Brass Air Brake Hose Ends
Brass Air Brake Hose Ends
Air Vents
![](products/brass-air-brake-hose-ends/air-vents.jpg)

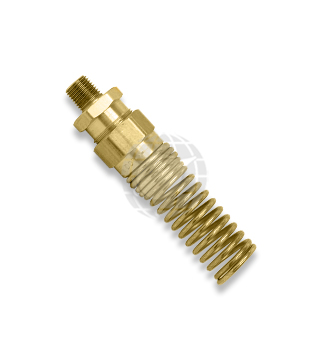

Assy With Spring Guard
![](products/brass-air-brake-hose-ends/assy-with-spring-guard.jpg)

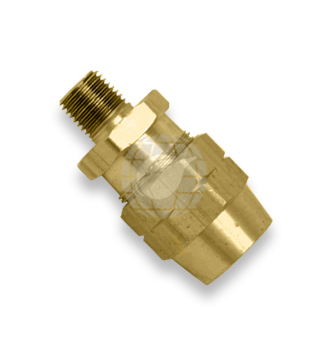

Assy Without Spring Guard
![](products/brass-air-brake-hose-ends/assy-wo-spring-guard.jpg)

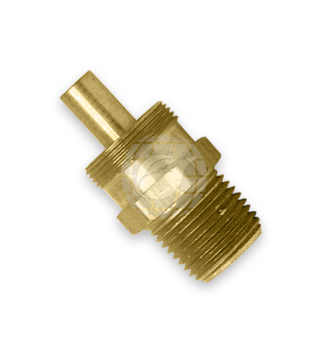

Body
![](products/brass-air-brake-hose-ends/body.jpg)

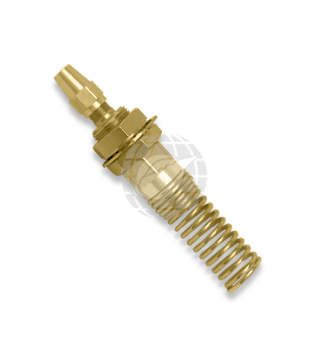

Copper Tubing to Hose
![](products/brass-air-brake-hose-ends/copper-tubing-to-hose.jpg)

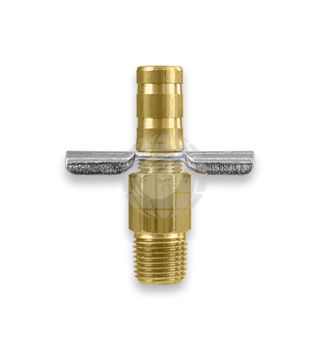

Internal Seat DC
![](products/brass-air-brake-hose-ends/internal-seat-dc.jpg)

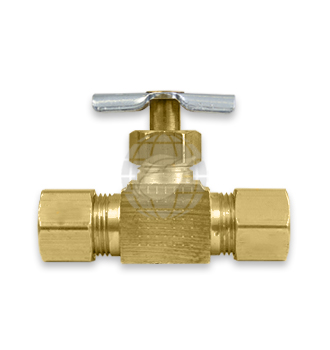

Nv Compression Double
![](products/brass-air-brake-hose-ends/nv-compression-double.jpg)

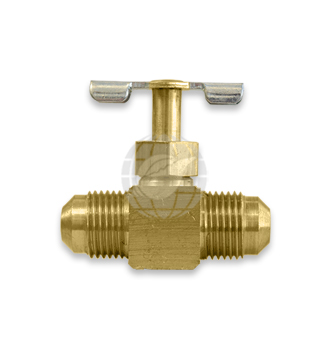

Nv Flare to Flare
![](products/brass-air-brake-hose-ends/nv-flare-to-flare.jpg)

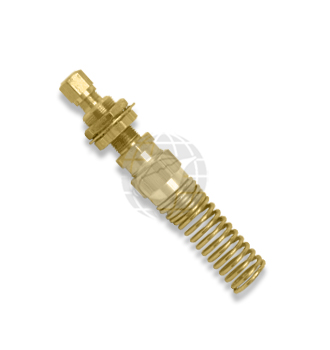

Nylon Tubing to Hose
![](products/brass-air-brake-hose-ends/nylon-tubing-to-hose.jpg)

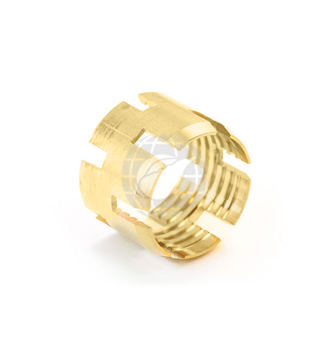

Hose Sleeve
![](products/brass-air-brake-hose-ends/hose-sleeve.jpg)
Material
- CA360 Brass
Typical Application
Air brake systems except where temperatures exceed +2000F or where battery acid can drip on tubing.
Conformance
Meets specifications and standards of SAE and DOT FMVSS 571,106.
Used With
NT Nylon Tubing - SAE J844 Type A and B.
Pressure
Maximum operating pressure of 150 PSI.
Temperature Ranges
-40°F to +200°F (-40°C to +93°C).
Size | UNEF Thread | UNF Thread |
1/8" | 5/16" x 24 | 5/16" x 24 |
3/16" | 3/8" x 24 | 3/8" x 24 |
1/4" | 7/16" x 24 | 7/16" x 20 |
5/16" | 1/2"x 24 | 1/2"x 20 |
3/8" | 9/16" x 24 | 5/8" x 18 |
1/2" | 11/16" x 20 | 3/4" x 16 |
7/16" | 5/8" x 24 | ‐ |
5/8" | 13/16" x 18 | 7/8" x 14 |
3/4" | 1" x 18 | 1-1/16" x 12 |
7/8" | 1-1/8" x 18 | ‐ |
