Brass Push On Hose Barbs
Brass Push On Hose Barbs

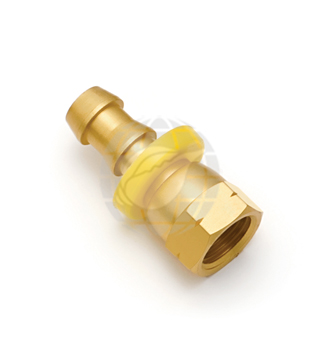

Female Swivel Hose Barb 45 Deg 37 Deg
Swivel Joint

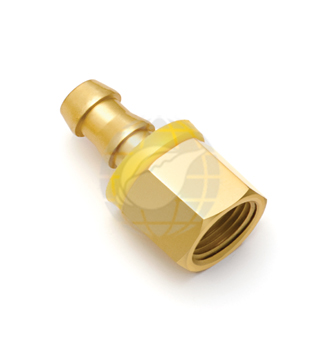

Tapered Female Pipe Thread

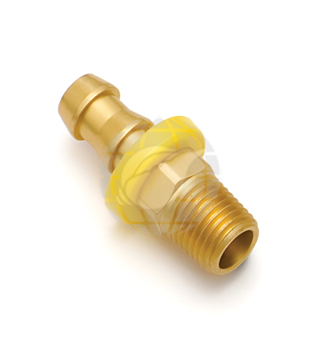

Tapered Male Pipe Thread
Material
- CA360 Brass
Typical Application
Low Pressure Air, Fuel, Lube, and Oil Lines
Pressure
Pressure determined by tube material and hardness.
| Size | UNEF Thread | UNF Thread |
| 1/8" | 5/16" x 24 | 5/16" x 24 |
| 3/16" | 3/8" x 24 | 3/8" x 24 |
| 1/4" | 7/16" x 24 | 7/16" x 20 |
| 5/16" | 1/2"x 24 | 1/2"x 20 |
| 3/8" | 9/16" x 24 | 5/8" x 18 |
| 1/2" | 11/16" x 20 | 3/4" x 16 |
| 7/16" | 5/8" x 24 | ‐ |
| 5/8" | 13/16" x 18 | 7/8" x 14 |
| 3/4" | 1" x 18 | 1-1/16" x 12 |
| 7/8" | 1-1/8" x 18 | ‐ |
