Brass Compression Fittings
Brass Compression Fittings

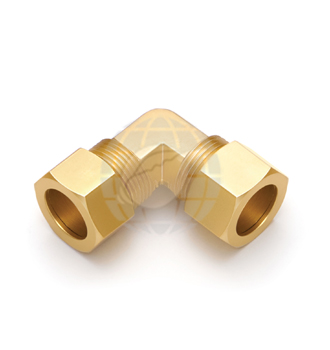

90° Double End Elbow

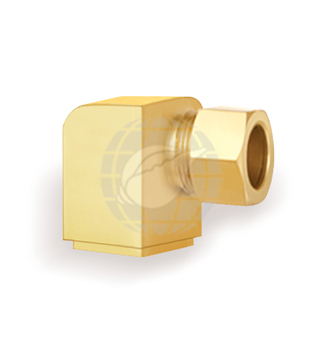

90° Female Elbow

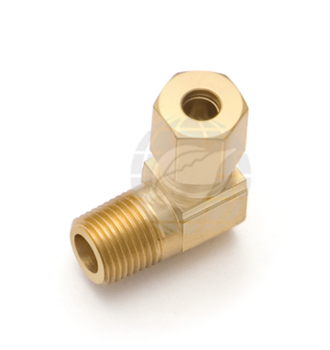

90° Male Elbow Forging

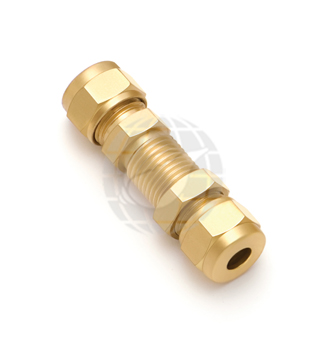

Bulk Head Union With Lock Nut

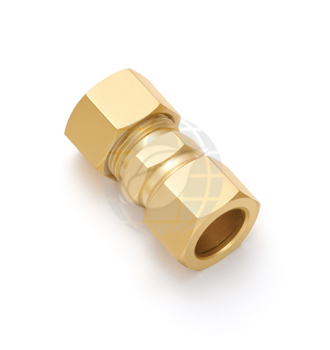

Double End Union

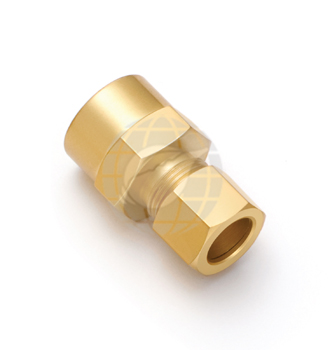

Compression Female Connector
Flare Male Connector

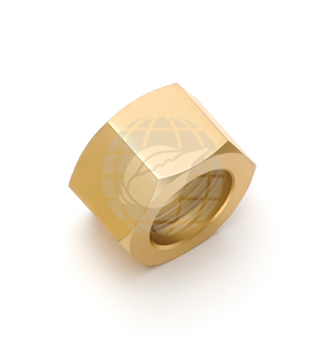

Compression Nut

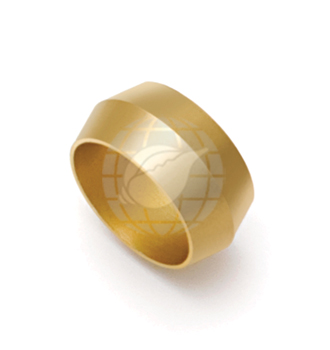

Brass Sleeve

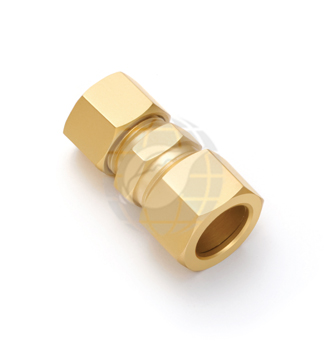

Reducing Union
Material
- CA360 Brass for Barstock fittings
- CA377 Brass for forged fittings
Typical Application
Use with copper, aluminum and thermoplastic tubing. Not recommended for steel tubing. Manufactured for low and medium pressure tubing connection work where excessive vibration or tube movement is not involved. Not recommended for application using gaseous media.
Working Pressure Ranges
Temperature and type of tubing used are important factors. However, the following table is a good guide for proper selection. Temperature 730F with copper tubing
Conformance
Meets specifications and standards of ASA, ASME and SAE.
Used With
Aluminium, copper, brass and plastic tubing. Plastic tubing requires insert. Not recommended for steel tubing.
Pressure
Temperature Ranges
-65oF to +250oF (-53oC to +121oC) range at maximum operating pressures. (Refer to tubing temperature range.)
| Size | UNEF Thread | UNF Thread |
| 1/8" | 5/16" x 24 | 5/16" x 24 |
| 3/16" | 3/8" x 24 | 3/8" x 24 |
| 1/4" | 7/16" x 24 | 7/16" x 20 |
| 5/16" | 1/2"x 24 | 1/2"x 20 |
| 3/8" | 9/16" x 24 | 5/8" x 18 |
| 1/2" | 11/16" x 20 | 3/4" x 16 |
| 7/16" | 5/8" x 24 | ‐ |
| 5/8" | 13/16" x 18 | 7/8" x 14 |
| 3/4" | 1" x 18 | 1-1/16" x 12 |
| 7/8" | 1-1/8" x 18 | ‐ |
