Brass Pipe Fittings
Brass Pipe Fittings
45° Forged Male Female Elbow

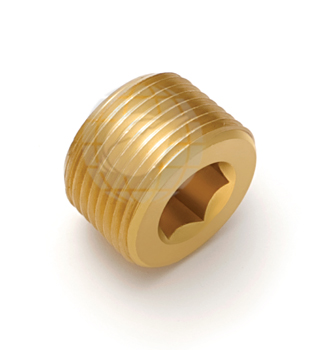

Countersunk Hex Plug

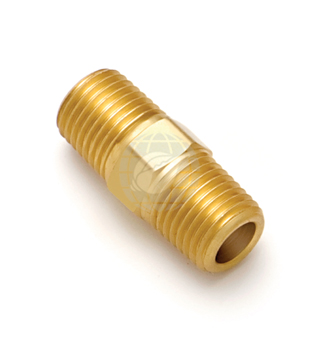

Hoxagone Nipple

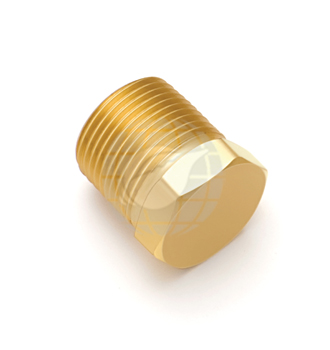

Hex Head Plug

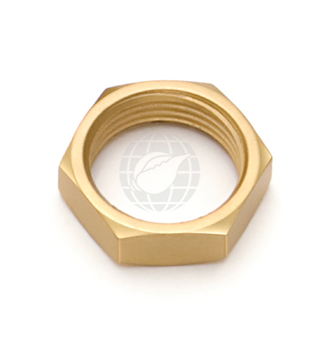

Brass Lock Nut
Brass Nipple

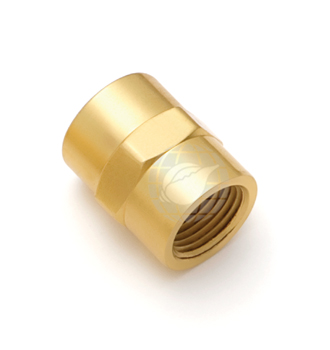

Pipe Coupling

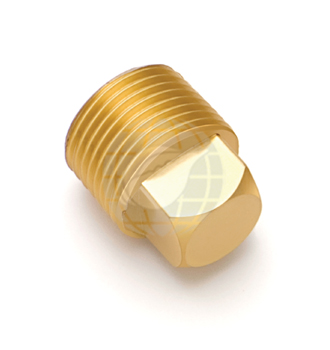

Square Head Plug

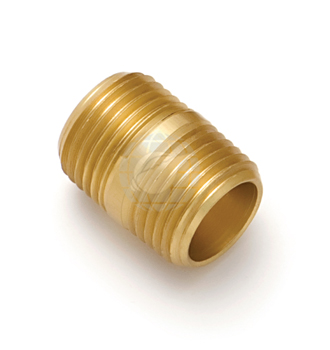

Close Nipple

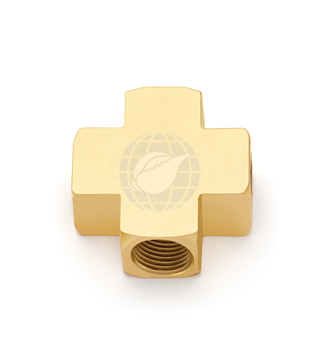

Female Cross

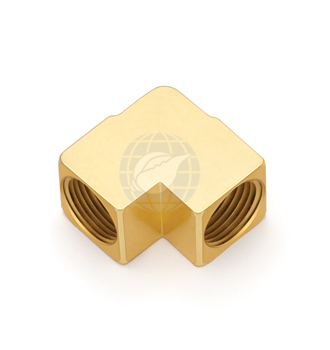

Female Elbow

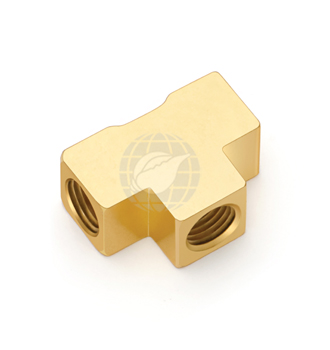

Forged Female Tee
Forged Street Elbow

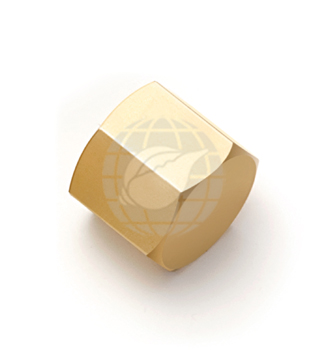

Pipe Cap

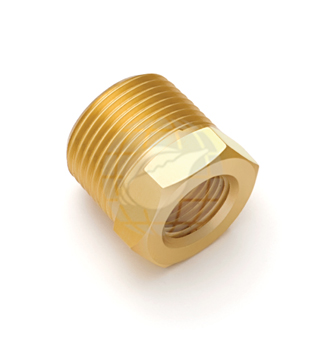

Reducing Bush NPTF

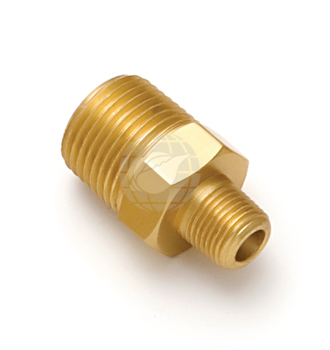

Reducing Hex Nipple

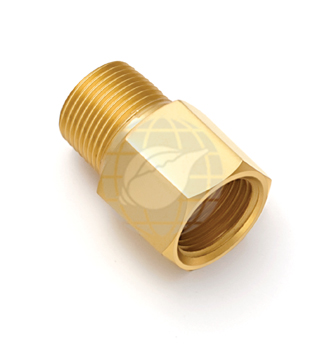

Reducing Male Female Adapter
Material
- CA360 Brass for barstock fittings
- CA377 Brass for forged fittings
Typical Application
Grease, fuels, LP and Natural gas (available on special order), refrigeration, instrumentation and hydraulic systems.
Conformance
Meets specifications and standards of ASA, ASME and SAE
Used With
Brass, bronze, copper, steel, aluminium and iron pipe.
Pressure
Operating pressure up to 1200 PSI.
Temperature Ranges
-650F to +2500F (-530C to +1210C).
Finish
Natural Brass, Nickel Plated or any special platings as per customer requirement.
| Size | UNEF Thread | UNF Thread |
| 1/8" | 5/16" x 24 | 5/16" x 24 |
| 3/16" | 3/8" x 24 | 3/8" x 24 |
| 1/4" | 7/16" x 24 | 7/16" x 20 |
| 5/16" | 1/2"x 24 | 1/2"x 20 |
| 3/8" | 9/16" x 24 | 5/8" x 18 |
| 1/2" | 11/16" x 20 | 3/4" x 16 |
| 7/16" | 5/8" x 24 | ‐ |
| 5/8" | 13/16" x 18 | 7/8" x 14 |
| 3/4" | 1" x 18 | 1-1/16" x 12 |
| 7/8" | 1-1/8" x 18 | ‐ |
